Addressable fire alarm systems.
Every device has its own address, so the panel tells you exactly where a fire or fault is. The usual choice for larger and more complex buildings.
How it works
Detectors, call points and other devices are wired on a loop that starts and ends at the control panel. Each device carries a unique address. The panel monitors every device individually and reports, for example, ’Smoke detector, first floor corridor, device 14’ rather than just a zone.
Why that helps
- Faster response. People know where to go, and the fire and rescue service can see the location of the alarm.
- Faster fault finding. A dirty detector, a broken cable or a removed device is identified precisely.
- More control. Individual devices can be disabled, such as during building work, without switching off the whole zone.
- Fewer unwanted alarms. Detection can be tuned device by device, for example for a kitchen-adjacent corridor.
What it suits
- Offices, schools and larger commercial buildings
- Multi-floor buildings and multi-tenant premises
- Hotels, care homes and larger hospitality venues
- Buildings that will be altered or extended over time
Cost and flexibility
Devices cost more than conventional equivalents, but loop cabling uses less cable than separate zone circuits in a large building, and later alterations are usually simpler. For a large building it is often cost-competitive; for a small one it is usually more than the building needs.

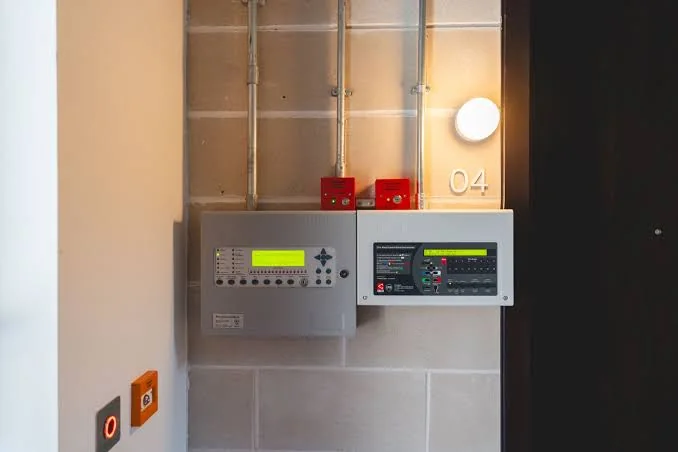

Panels in service areas and risers.
Larger buildings often put addressable panels and repeaters in service corridors or plant areas, close to the equipment they control, with call points on the nearby escape route.
The panel and the plan.

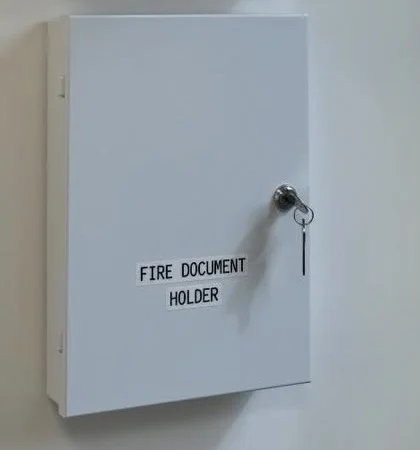

An addressable panel has a display that names the device and its location. Beside it you should find the zone plan, the logbook and the building’s fire documents. In the photograph, the document holder under the panel keeps those records where an engineer or fire officer can find them.
Common questions.
What is the difference between conventional and addressable?
Conventional systems tell you the zone of an alarm. Addressable systems tell you exactly which device activated. Addressable costs more to install but gives much more information, which matters in larger buildings.
Is addressable always better?
No. It is better when the building is large or complex enough to benefit from the information. For a small, simple layout, conventional is often entirely appropriate.
Can addressable systems be wireless?
Yes. Some addressable systems use radio-linked devices that report to the panel individually, combining device-level information with minimal cabling. See wireless systems.
